Dependency-free RBF kernel SVM trained by kernel dual coordinate descent (implemented from scratch, no LibSVM code; C-SVC with the RBF kernel only, deliberately NOT a LibSVM replacement: no nu-variants, no SVR, no one-class, no probability estimates, no shrinking). More...

#include <classifier_rbf_svm.hpp>

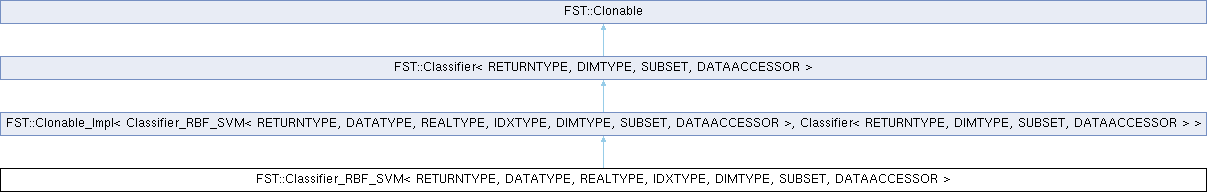

Inheritance diagram for FST::Classifier_RBF_SVM< RETURNTYPE, DATATYPE, REALTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >:

Public Types
typedef Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >	parent
	the immediate abstract base
typedef Clonable_Impl< Classifier_RBF_SVM, parent >	parent_impl
	implements clone() via the (implicit, member-wise) copy-constructor – all members are value-semantic
typedef std::shared_ptr< DATAACCESSOR >	PDataAccessor
	shared pointer to the data accessor supplying train/test blocks
typedef std::shared_ptr< SUBSET >	PSubset
	shared pointer to the feature subset being trained/evaluated
typedef DATAACCESSOR::PPattern	PPattern
	one data sample as exposed by DATAACCESSOR
Public Types inherited from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >
typedef std::shared_ptr< DATAACCESSOR >	PDataAccessor
	shared pointer to the data accessor supplying train/test blocks
typedef std::shared_ptr< SUBSET > const	PSubset
	shared pointer to the (fixed, non-reassignable) feature subset being evaluated
typedef DATAACCESSOR::PPattern	PPattern
	one data sample as exposed by DATAACCESSOR (a raw pointer to its feature vector)

Public Member Functions
void	set_parameter_C (const REALTYPE c)
	sets the SVM regularization parameter C (box constraint upper bound U under L1-loss); default 1
void	set_parameter_gamma (const REALTYPE g)
	RBF width on standardized features; 0 = auto (1/d), which is the default.
void	set_l2_loss (const bool l2)
	false = hinge (C-SVC correspondence, default), true = squared hinge
void	set_max_iter (const unsigned int mi)
	cap on full coordinate sweeps; default 1000
void	set_tolerance (const REALTYPE t)
	max \|projected gradient\| sweep-stopping threshold; default 0.1
REALTYPE	get_parameter_C () const
	returns the configured C
REALTYPE	get_parameter_gamma () const
	the configured value (0 = auto 1/d until set explicitly)
void	initialize (const PDataAccessor da)
	records data shape, allocates the index buffer
bool	optimize_parameters (const PDataAccessor da, const PSubset sub, const int max_points=100, const int max_throws=100, const double lgC_min=-5, const double lgC_max=9, const double lggamma_min=-15, const double lggamma_max=3, std::ostream &os=std::cout)
bool	mean_cv_accuracy (const PDataAccessor da, const PSubset sub, RETURNTYPE &mean)
	train+test over the accessor's split loop (optimize_parameters' evaluation)
virtual bool	classify (DIMTYPE &cls, const PPattern &pattern) override
virtual bool	classify_scores (std::vector< RETURNTYPE > &scores, const PPattern &pattern) override
virtual bool	train (const PDataAccessor da, const PSubset sub) override
	Trains the RBF-kernel SVM: buffers the subset index, standardizes the design (dense_train_tools.hpp), precomputes the N x N kernel matrix when it fits within KERNEL_BUDGET_ENTRIES (otherwise kernel_row() recomputes rows on demand), solves one dual coordinate-descent problem per one-vs-rest model (solve_dual(), FIXED cyclic order), then compacts the trained state to the support vectors – patterns with a nonzero dual coefficient in ANY model – into _sv/_beta. Returns false only when the split has no training data (N==0); a subset/data shape mismatch is an assertion failure, not a bool return.
virtual std::ostream &	print (std::ostream &os) const override
	writes a human-readable identification of the object; base default writes nothing
Public Member Functions inherited from FST::Clonable_Impl< Classifier_RBF_SVM< RETURNTYPE, DATATYPE, REALTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >, Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > >
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	clone () const override
	dispatches to the DEEP_KIND mechanism (default CLONE_DEEP: Derived's copy-constructor)
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	sharing_clone () const override
	dispatches to the SHARING_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	stateless_clone () const override
	dispatches to the STATELESS_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Public Member Functions inherited from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >
virtual bool	train (const PDataAccessor da, const PSubset sub)=0
	learns from designated training part of data
virtual bool	test (RETURNTYPE &result, const PDataAccessor da)
virtual bool	test_confusion (std::vector< RETURNTYPE > &confusion, DIMTYPE &classes, const PDataAccessor da)
virtual bool	test_scores (std::vector< std::pair< RETURNTYPE, DIMTYPE > > &scores, const PDataAccessor da)
virtual bool	test_scores_matrix (std::vector< RETURNTYPE > &scores, std::vector< DIMTYPE > &labels, DIMTYPE &classes, const PDataAccessor da)
virtual bool	test_metric (RETURNTYPE &result, const PDataAccessor da, const Metric_Spec< RETURNTYPE > &spec)
Public Member Functions inherited from FST::Clonable
bool	is_clone () const
bool	is_sharing () const
	true if this instance is a sharing_clone() result (referencing, not owning, the source's structures)
bool	is_sharing_clone () const
	true if this instance is BOTH a clone and sharing – i.e. specifically a sharing_clone() result, not a clone()/stateless_clone() one

Protected Member Functions
REALTYPE	kernel_value (const REALTYPE a, const REALTYPE b) const
	The penalized-bias RBF kernel K'(a,b) = exp(-gamma_eff*\|\|a-b\|\|^2) + 1 over the current _subfeatures standardized coordinates. `a` and `b` must each point at (at least) _subfeatures contiguous standardized values in subset order, e.g. rows of _Z/_sv or the classify_scores() scratch – never raw, unstandardized pattern data.
const REALTYPE *	kernel_row (const std::size_t i, const std::size_t N)
	Row `i` of the N x N kernel matrix over the N training patterns in _Z. When _K was precomputed (the within-budget path) returns a pointer straight into it; otherwise recomputes the row into the _krow scratch buffer and returns that instead – in that mode the returned pointer is only valid until the next kernel_row() call, since _krow is reused. `N` must match _Z's row count (the caller's training-set size).
void	solve_dual (REALTYPE *beta, const DIMTYPE positive_class)
	One one-vs-rest kernel dual coordinate-descent run: patterns of class `positive_class` are the +1 side, all others the -1 side. Writes the N dual coefficients alpha_i*y_i into `beta`, which must have room for N = _y.size() entries. Requires _Z/_y/_gamma_eff and the kernel state (_K or _krow) to be set up by train(); uses _alpha and _s as scratch. Stops when the largest projected gradient of a sweep falls below _tol, or after _max_iter sweeps (no convergence failure is reported – an unconverged model is simply less accurate).
DIMTYPE	model_count () const
	number of one-vs-rest models actually trained: 1 for two-class data (the single model scores both sides), _classes otherwise
Protected Member Functions inherited from FST::Clonable
void	set_cloned (const bool cloned=true)
	marks/unmarks this instance as a clone; call from clone()/stateless_clone() overrides (Clonable_Impl does this automatically)
void	set_sharing (const bool sharing=true)
	marks/unmarks this instance as sharing (see is_sharing())
void	set_sharing_cloned (const bool cloned=true, const bool sharing=true)
	sets both flags at once; call from sharing_clone() overrides (Clonable_Impl does this automatically)

Protected Attributes
REALTYPE	_C
	regularization parameter, see set_parameter_C()
REALTYPE	_gamma
	configured RBF gamma; 0 = auto: 1/d per train() (the effective value actually used is _gamma_eff)
bool	_l2loss
	false = hinge loss (default), true = squared hinge
unsigned int	_max_iter
	cap on full coordinate sweeps in solve_dual()
REALTYPE	_tol
	max \|projected gradient\| sweep-stopping threshold
DIMTYPE	_classes
	class count, set by initialize()
DIMTYPE	_features
	raw (full, unnarrowed) feature count, set by initialize()
DIMTYPE	_subfeatures
	d = current subset size
std::vector< DIMTYPE >	_index
	subset position -> raw feature index (first d entries valid)
std::vector< REALTYPE >	_mean
	standardization shift per subset position
std::vector< REALTYPE >	_scale
	standardization scale per subset position (1 for constant features)
REALTYPE	_gamma_eff
	gamma actually used by the trained model (resolves _gamma's 0=auto to 1/d)
IDXTYPE	_sv_count
	support vectors kept (nonzero dual coefficient in ANY model)
std::vector< REALTYPE >	_sv
	sv_count x d standardized support-vector values
std::vector< REALTYPE >	_beta
	models x sv_count dual coefficients alpha_i*y_i; two-class data holds ONE model
std::vector< REALTYPE >	_Z
	N x d standardized design (no bias coordinate — the +1 kernel offset carries it).
std::vector< DIMTYPE >	_y
	N training labels.
std::vector< REALTYPE >	_alpha
	N dual variables of the model currently being trained (solve_dual() scratch).
std::vector< REALTYPE >	_s
	N maintained margin sums s_k = sum_j alpha_j y_j K'_jk.
std::vector< REALTYPE >	_K
	N x N kernel matrix K' (only when within budget, else empty – see KERNEL_BUDGET_ENTRIES).
std::vector< REALTYPE >	_krow
	kernel-row scratch for the above-budget mode (filled by kernel_row())
std::vector< REALTYPE >	_cs_x
	classify_scores() per-pattern scratch: the standardized query pattern (kept as a member to avoid per-pattern allocation)
std::vector< REALTYPE >	_cs_kv
	classify_scores() per-pattern scratch: kernel value against each support vector
std::vector< RETURNTYPE >	_cs_sc
	classify() score scratch
std::vector< REALTYPE >	_beta_full
	models x N pre-compaction dual coefficients (solve_dual() output before the support-vector compaction in train()); kept allocated as scratch, the trained model itself is _sv/_beta

Static Protected Attributes
static constexpr std::size_t	KERNEL_BUDGET_ENTRIES =((std::size_t)1<<29)/sizeof(REALTYPE)
	kernel-matrix memory budget in entries (512 MB of double); above it rows are recomputed on demand

Detailed Description

template<class RETURNTYPE, typename DATATYPE, typename REALTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>
class FST::Classifier_RBF_SVM< RETURNTYPE, DATATYPE, REALTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >

Dependency-free RBF kernel SVM trained by kernel dual coordinate descent (implemented from scratch, no LibSVM code; C-SVC with the RBF kernel only, deliberately NOT a LibSVM replacement: no nu-variants, no SVR, no one-class, no probability estimates, no shrinking).

The solver is the Classifier_Linear_SVM structure kernelized via the PENALIZED-BIAS formulation: the kernel is offset by a constant, K'(x,z) = exp(-gamma*||x-z||^2) + 1, the kernel analogue of the appended constant coordinate (LIBLINEAR's -B 1 convention) - this removes the equality constraint that otherwise forces two-variable SMO, so the dual stays a box-constrained problem solved coordinate-wise in FIXED CYCLIC order: fully deterministic and RNG-free, so a fixed seed and any thread count give identical results (the fst_rand stream is never touched). The margin sums s_k = sum_j alpha_j y_j K'_jk are maintained incrementally, so one gradient check costs O(1) and one alpha update costs O(N) given the kernel row. The N x N kernel matrix is precomputed when it fits a fixed memory budget (shared by all one-vs-rest models); above the budget, kernel rows are recomputed on demand - slower, still exact and deterministic. L1-loss (hinge; the C-SVC correspondence, default) or L2-loss (squared hinge) via the diagonal shift, exactly as in the linear solver. Features are standardized internally per split like the logistic-regression classifier; gamma defaults to 1/d on the standardized features (0 = auto). Deliberately a SIBLING of Classifier_Linear_SVM, not a refactor - the linear solver keeps its kernel-free fast path.

Multiclass = one-vs-rest with K dual solves over the SAME kernel matrix; two-class data trains ONE model (class index 0 = +1 side) and derives both scores from its single decision value. After training the model is compacted to the support vectors (patterns with a nonzero dual coefficient in ANY model); classify() takes the argmax of the per-class decision values (first maximum wins) and classify_scores() exposes them for the ranking metrics (AUC). The bias lives inside the +1 kernel offset - sum_i beta_i acts as the intercept, no separate term.

Results are NOT bit-comparable to LibSVM at matched C/gamma (different solver, penalized vs. exact bias, internal standardization) - the correspondence bar is near-identical accuracy, by design.
