Wraps external Support Vector Machine implementation (in LibSVM) to serve as FST4 classifier. More...

#include <classifier_svm.hpp>

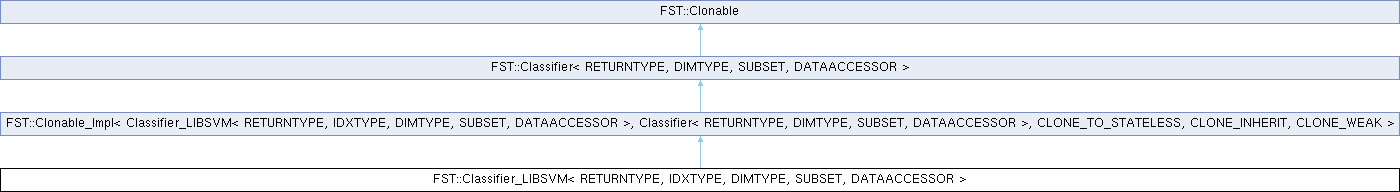

Inheritance diagram for FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >:

Classes
class	ParameterSet
	Nested class to hold parameter candidates in the course of optimize_parameters() run. More...

Public Types
typedef Clonable_Impl< Classifier_LIBSVM, Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >, CLONE_TO_STATELESS, CLONE_INHERIT, CLONE_WEAK >	parent_impl
typedef std::shared_ptr< DATAACCESSOR >	PDataAccessor
	shared pointer to the data accessor supplying train/test blocks
typedef std::shared_ptr< SUBSET > const	PSubset
	shared pointer to the (fixed) feature subset being trained/evaluated
typedef DATAACCESSOR::PPattern	PPattern
	one data sample as exposed by DATAACCESSOR
Public Types inherited from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >
typedef std::shared_ptr< DATAACCESSOR >	PDataAccessor
	shared pointer to the data accessor supplying train/test blocks
typedef std::shared_ptr< SUBSET > const	PSubset
	shared pointer to the (fixed, non-reassignable) feature subset being evaluated
typedef DATAACCESSOR::PPattern	PPattern
	one data sample as exposed by DATAACCESSOR (a raw pointer to its feature vector)

Public Member Functions
void	initialize (const PDataAccessor da)
	Must be called (once, or again after a dataset-shape change) before train()/test(). Discards any previously allocated buffers (cleanup()), records the new dataset shape (pattern/class/feature counts) from `da`, then pre-allocates the LibSVM problem/parameter transfer buffers sized to it (allocate()).
void	set_parameter_C (double newC)
	sets the LibSVM regularization parameter C
void	set_parameter_gamma (double newgamma)
	sets the LibSVM kernel gamma (RBF/POLY/SIGMOID)
void	set_parameter_coef0 (double newcoef0)
	sets the LibSVM kernel coef0 (POLY/SIGMOID)
void	set_kernel_type (int kernel_type)
	LINEAR/POLY/RBF/SIGMOID – see svm.h for admissible values.
double	get_parameter_C () const
	current LibSVM regularization parameter C
double	get_parameter_gamma () const
	current LibSVM kernel gamma (RBF/POLY/SIGMOID)
double	get_parameter_coef0 () const
	current LibSVM kernel coef0 (POLY/SIGMOID)
int	get_kernel_type () const
	see svm.h for admissible values
virtual bool	classify (DIMTYPE &cls, const PPattern &pattern) override
virtual bool	classify_scores (std::vector< RETURNTYPE > &scores, const PPattern &pattern) override
virtual bool	train (const PDataAccessor da, const PSubset sub) override
virtual bool	test (RETURNTYPE &result, const PDataAccessor da) override
bool	optimize_parameters (const PDataAccessor da, const PSubset sub, const int max_points=100, const int max_throws=100, const double lgC_min=-5, const double lgC_max=9, const double lggamma_min=-15, const double lggamma_max=3, const double lgcoef0_min=-2, const double lgcoef0_max=5, std::ostream &os=std::cout)
	Searches for better SVM hyperparameters C, gamma and coef0 and adopts the best set found.
virtual std::ostream &	print (std::ostream &os) const override
	writes a human-readable identification of the object; base default writes nothing
Public Member Functions inherited from FST::Clonable_Impl< Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >, Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >, CLONE_TO_STATELESS, CLONE_INHERIT, CLONE_WEAK >
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	clone () const override
	dispatches to the DEEP_KIND mechanism (default CLONE_DEEP: Derived's copy-constructor)
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	sharing_clone () const override
	dispatches to the SHARING_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR > *	stateless_clone () const override
	dispatches to the STATELESS_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Public Member Functions inherited from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >
virtual bool	test_confusion (std::vector< RETURNTYPE > &confusion, DIMTYPE &classes, const PDataAccessor da)
virtual bool	test_scores (std::vector< std::pair< RETURNTYPE, DIMTYPE > > &scores, const PDataAccessor da)
virtual bool	test_scores_matrix (std::vector< RETURNTYPE > &scores, std::vector< DIMTYPE > &labels, DIMTYPE &classes, const PDataAccessor da)
virtual bool	test_metric (RETURNTYPE &result, const PDataAccessor da, const Metric_Spec< RETURNTYPE > &spec)
Public Member Functions inherited from FST::Clonable
bool	is_clone () const
bool	is_sharing () const
	true if this instance is a sharing_clone() result (referencing, not owning, the source's structures)
bool	is_sharing_clone () const
	true if this instance is BOTH a clone and sharing – i.e. specifically a sharing_clone() result, not a clone()/stateless_clone() one

Protected Types
typedef std::list< ParameterSet >	PARAMSETLIST
	the growing list of parameter candidates evaluated so far, in evaluation order

Protected Member Functions
void	allocate ()
void	cleanup ()
Protected Member Functions inherited from FST::Clonable
void	set_cloned (const bool cloned=true)
	marks/unmarks this instance as a clone; call from clone()/stateless_clone() overrides (Clonable_Impl does this automatically)
void	set_sharing (const bool sharing=true)
	marks/unmarks this instance as sharing (see is_sharing())
void	set_sharing_cloned (const bool cloned=true, const bool sharing=true)
	sets both flags at once; call from sharing_clone() overrides (Clonable_Impl does this automatically)

Protected Attributes
IDXTYPE	_all_patterns
	total pattern count across all classes, set by initialize()
DIMTYPE	_classes
	class count, set by initialize()
DIMTYPE	_features
	raw (full, unnarrowed) feature count, set by initialize()
struct svm_problem	problem
	LibSVM training data (problem.x/y), rebuilt by train() from the designated TRAIN blocks.
struct svm_parameter	parameters
	LibSVM training parameters (C, gamma, kernel_type, ...) – see set_parameter_*()/set_kernel_type().
struct svm_model *	model
	the trained LibSVM model, or nullptr before the first successful train()
struct svm_node *	onepattern
	single-pattern LibSVM transfer buffer, filled by fill_onepattern() for classify()/classify_scores()
bool	svm_class_weighing
	vestigial class-weighing switch: set false by the constructor and never read – allocate() unconditionally forces parameters.nr_weight=0 regardless of this flag

Private Member Functions
	Classifier_LIBSVM (const Classifier_LIBSVM &csvm, int)
	Weak copy-constructor backing stateless_clone() (see parent_impl above): copies configuration (parameters, shape counters, svm_class_weighing, the narrowing _index) but deliberately NOT the trained LibSVM model/problem structures – it allocate()s fresh, empty transfer buffers instead. The resulting clone is therefore UNTRAINED; classify()/ test() throw until train() is called on it.
void	fill_onepattern (const PPattern &pattern)
	transfers the pattern's nonzero selected features into onepattern (the shared classify()/classify_scores() transfer loop)

Private Attributes
friend	parent_impl
std::unique_ptr< DIMTYPE[]>	_index
	subset position -> raw feature index map, filled by train() from sub->selected_features(); regrown on demand
DIMTYPE	_subfeatures
	current subset size (number of valid entries in _index[]), set by train()
std::vector< double >	_dec

Detailed Description

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>
class FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >

Wraps external Support Vector Machine implementation (in LibSVM) to serve as FST4 classifier.

Note: clone() yields an UNTRAINED clone (LibSVM model structures cannot be deep-copied); using an untrained clone fails loudly in classify()/test() - call train() first.; LibSVM is NOT distributed with FST4. Obtain svm.cpp and svm.h (version 3.37, or any version compatible with the public LibSVM API used here) from the LibSVM site and place them into ./libsvm/ before building anything that includes this header; libsvm/readme.txt in the FST4 distribution states the exact steps.

Warning: LIBSVM especially with LINEAR kernel seems to have occassional problems with certain C values on certain datasets and may freeze. (Other kernels are more stable but not completely immune to this problem.) This is a problem outside FST4. Classifier_Linear_SVM and Classifier_RBF_SVM are FST4's own, dependency-free alternatives.

Member Typedef Documentation

◆ parent_impl

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

typedef Clonable_Impl<Classifier_LIBSVM,Classifier<RETURNTYPE,DIMTYPE,SUBSET,DATAACCESSOR>,CLONE_TO_STATELESS,CLONE_INHERIT,CLONE_WEAK> FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::parent_impl

parent_impl: clone() forwards to stateless_clone() (LibSVM model structures cannot be cloned, so clones are UNTRAINED - which is what makes threaded wrapper usage possible at all, as the wrapper always train()s a clone before using it); stateless_clone() uses the weak copy-constructor; sharing_clone() throws in Classifier. Using an untrained clone fails loudly in classify()/test().

Member Function Documentation

◆ allocate()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

void FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::allocate ( )

protected

Pre-allocates the svm_problem/svm_parameter transfer buffers sized to the current _all_patterns/_classes/_features (the caller – initialize() or the weak copy-constructor – must set these first). Throws fst_error (via cleanup()) on malloc failure.

◆ classify()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

bool FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::classify	(	DIMTYPE &	cls,
		const PPattern &	pattern )

overridevirtual

classifies pattern, returns the respective class index in cls. Throws fst_error when no model has been trained yet (in particular on a fresh clone, which never inherits the trained state).

Implements FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >.

◆ classify_scores()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

bool FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::classify_scores	(	std::vector< RETURNTYPE > &	scores,
		const PPattern &	pattern )

overridevirtual

LibSVM decision values for ranking metrics (AUC): binary = signed decision value, K>2 = per-class one-vs-one aggregation; deterministic, unlike LibSVM's probability mode. Throws fst_error when untrained; returns false when the trained model's class labels cannot be mapped onto [0,classes).

Reimplemented from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >.

◆ cleanup()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

void FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::cleanup ( )

protected

Frees every LibSVM-related buffer and resets the shape counters to 0; idempotent (each pointer is individually guarded) – safe to call from allocate()'s failure handler, initialize(), and the destructor.

◆ optimize_parameters()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

bool FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::optimize_parameters	(	const PDataAccessor	da,
		const PSubset	sub,
		const int	max_points = 100,
		const int	max_throws = 100,
		const double	lgC_min = -5,
		const double	lgC_max = 9,
		const double	lggamma_min = -15,
		const double	lggamma_max = 3,
		const double	lgcoef0_min = -2,
		const double	lgcoef0_max = 5,
		std::ostream &	os = std::cout )

Searches for better SVM hyperparameters C, gamma and coef0 and adopts the best set found.

A space-filling random search, not a grid: max_points candidate parameter sets are evaluated one after another; each is chosen by drawing max_throws random candidates and keeping the one whose distance to the already-evaluated candidates (normalized per axis, weighted by their accuracy so that the neighbourhood of bad candidates is explored less) is largest. A candidate is evaluated by train()+test() over the ENTIRE split loop of da with the fixed feature subset sub; its value is the mean accuracy over the splits. The current parameter values are evaluated first and take part in the competition.

Parameters

da	data accessor; initialize() must have been called for it. Its split loop is traversed once per candidate, so the cost is (max_points+1) * splits * (train+test).
sub	the feature subset to optimize for; must be non-empty and stays fixed.
max_points	number of candidate parameter sets to evaluate (>0).
max_throws	number of random draws per candidate to choose from (>0); larger values spread the candidates more evenly at negligible cost (no training is involved).
lgC_min,lgC_max,lggamma_min,lggamma_max,lgcoef0_min,lgcoef0_max	search bounds, given as NATURAL logarithms of the parameter despite the "lg" in the names: a candidate is exp(uniform(min,max)). The defaults therefore span C in [e^-5,e^9], gamma in [e^-15,e^3], coef0 in [e^-2,e^5]. Each max must exceed its min. gamma is only meaningful for RBF/POLY/SIGMOID and coef0 only for POLY/SIGMOID – the unused ones are still drawn and set, but they do not enter the candidate distance and do not affect the model.
os	stream the progress report is written to (one line per candidate, plus a before/after summary); pass a null stream to silence it.

Returns: true when the search completed; false as soon as a train() or test() call fails, in which case the object keeps the parameters of the candidate that was being evaluated.

Note: On success the object's C, gamma and coef0 are left set to the best candidate, but the trained model is still the one from the LAST candidate evaluated – call train() again before classify()/test() to use the optimized parameters.; Randomness comes from fst_rand(), so a given seed reproduces the whole search. Not reentrant (it uses a member iterator), and it must not run concurrently on one object.

Warning: LIBSVM LINEAR kernel seems to have problems with certain C values on certain datasets. If the optimization process seemingly freezes, try narrower lgC_min and lgC_max. Especially the lower bound seems important to be increased.

◆ print()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

virtual std::ostream & FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::print ( std::ostream & os ) const

inlineoverridevirtual

writes a human-readable identification of the object; base default writes nothing

Reimplemented from FST::Clonable.

◆ test()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

bool FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::test	(	RETURNTYPE &	result,
		const PDataAccessor	da )

overridevirtual

estimates accuracy (fraction of correctly classified patterns) over the designated TEST part of the data, using the subset train() was last called with. Throws fst_error when untrained.

Reimplemented from FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >.

◆ train()

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

bool FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::train	(	const PDataAccessor	da,
		const PSubset	sub )

overridevirtual

learns from the designated TRAIN part of the data, restricted to the features in sub. Requires a preceding initialize() for the same dataset shape. Returns false when LibSVM returns no model; throws fst_error on transfer failures (the object is cleanup()'d first).

Implements FST::Classifier< RETURNTYPE, DIMTYPE, SUBSET, DATAACCESSOR >.

Member Data Documentation

◆ _dec

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

std::vector<double> FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::_dec

private

classify_scores() one-vs-one decision-value scratch (member to avoid per-pattern allocation)

◆ parent_impl

template<class RETURNTYPE, typename IDXTYPE, typename DIMTYPE, class SUBSET, class DATAACCESSOR>

friend FST::Classifier_LIBSVM< RETURNTYPE, IDXTYPE, DIMTYPE, SUBSET, DATAACCESSOR >::parent_impl

private

grants Clonable_Impl access to the weak copy-constructor

The documentation for this class was generated from the following file:

/Users/psms/dev/devtest1/_src_criteria/classifier_svm.hpp
