Implements L_1 (city-block / Manhattan) distance. More...

#include <distance_L1.hpp>

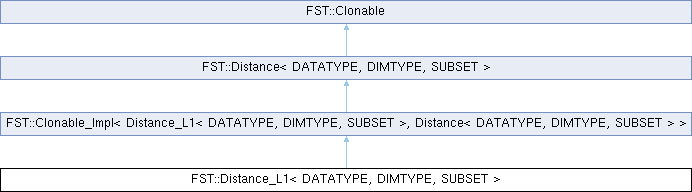

Inheritance diagram for FST::Distance_L1< DATATYPE, DIMTYPE, SUBSET >:

Public Types
typedef Distance< DATATYPE, DIMTYPE, SUBSET >	parent
	base class: the abstract distance interface
typedef Clonable_Impl< Distance_L1, parent >	parent_impl
	implements clone(); sharing/stateless_clone throw in Distance
Public Types inherited from FST::Distance< DATATYPE, DIMTYPE, SUBSET >
typedef std::shared_ptr< SUBSET >	PSubset
	shared pointer to a feature subset, as consumed by narrow_to()

Public Member Functions
	Distance_L1 (const DIMTYPE n)
	Constructs and immediately reset()s for `n` raw features (see Distance::reset()).
	Distance_L1 (const Distance_L1 &dl1)
	Copy-constructor; delegates to parent_impl (deep-copies the current _index[] mapping).
virtual DATATYPE	distance (const DATATYPE pattern1, const DATATYPE pattern2) override
	Distance between two raw patterns over the currently active features only. Reads exactly get_d() entries of each pattern, at the raw indices in _index[] (identity unless narrow_to() is in effect) – concrete distances must index through _index[], never assume a contiguous 0..get_d()-1 layout.
virtual std::ostream &	print (std::ostream &os) const override
	writes a human-readable identification of the object; base default writes nothing
Public Member Functions inherited from FST::Clonable_Impl< Distance_L1< DATATYPE, DIMTYPE, SUBSET >, Distance< DATATYPE, DIMTYPE, SUBSET > >
Distance< DATATYPE, DIMTYPE, SUBSET > *	clone () const override
	dispatches to the DEEP_KIND mechanism (default CLONE_DEEP: Derived's copy-constructor)
Distance< DATATYPE, DIMTYPE, SUBSET > *	sharing_clone () const override
	dispatches to the SHARING_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Distance< DATATYPE, DIMTYPE, SUBSET > *	stateless_clone () const override
	dispatches to the STATELESS_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Public Member Functions inherited from FST::Distance< DATATYPE, DIMTYPE, SUBSET >
	Distance (const Distance &d)
	Copy-constructor; deep-copies the current _index[] mapping (same narrowed/denarrowed state as `d`).
void	reset (const DIMTYPE n)
	Allocates for `n` raw features and makes _index[] the identity map 0..n-1, with all `n` features active (get_d()==get_n()); narrow_to() restricts that.
void	narrow_to (const PSubset sub)
	Restricts distance() to `sub's` selected features only. Rewrites _index[] to the subset's selected feature indices (raw-feature order) and sets get_d() to the subset size; distance() then reads only those _d entries of a pattern, through _index[], instead of all _n. Precondition: reset() must have been called with n >= the subset size.
void	denarrow ()
	Undoes narrow_to(): _index[] reverts to the identity map and get_d() returns to get_n().
DIMTYPE	get_n () const
	the full (raw, unnarrowed) feature count fixed by reset()
DIMTYPE	get_d () const
	the currently active feature count: the narrowed subset size after narrow_to(), get_n() after reset()/denarrow()
Distance *	sharing_clone () const override
Distance *	stateless_clone () const override
Public Member Functions inherited from FST::Clonable
bool	is_clone () const
bool	is_sharing () const
	true if this instance is a sharing_clone() result (referencing, not owning, the source's structures)
bool	is_sharing_clone () const
	true if this instance is BOTH a clone and sharing – i.e. specifically a sharing_clone() result, not a clone()/stateless_clone() one

Additional Inherited Members
Protected Member Functions inherited from FST::Clonable
void	set_cloned (const bool cloned=true)
	marks/unmarks this instance as a clone; call from clone()/stateless_clone() overrides (Clonable_Impl does this automatically)
void	set_sharing (const bool sharing=true)
	marks/unmarks this instance as sharing (see is_sharing())
void	set_sharing_cloned (const bool cloned=true, const bool sharing=true)
	sets both flags at once; call from sharing_clone() overrides (Clonable_Impl does this automatically)
Protected Attributes inherited from FST::Distance< DATATYPE, DIMTYPE, SUBSET >
DIMTYPE	_n
	full raw feature count, fixed by reset()
DIMTYPE	_d
	currently active feature count (see get_d())
std::unique_ptr< DIMTYPE[]>	_index
	maps active-feature position [0,_d) to a raw feature index in [0,_n)

Detailed Description

template<typename DATATYPE, typename DIMTYPE, class SUBSET>
class FST::Distance_L1< DATATYPE, DIMTYPE, SUBSET >

Implements L_1 (city-block / Manhattan) distance.

sum over the currently active features of |pattern1[f] - pattern2[f]|; a true metric, less sensitive to single large coordinate differences than the Euclidean distance.

Examples: demo55.cpp.

Member Function Documentation

◆ distance()

template<typename DATATYPE, typename DIMTYPE, class SUBSET>

DATATYPE FST::Distance_L1< DATATYPE, DIMTYPE, SUBSET >::distance	(	const DATATYPE *	pattern1,
		const DATATYPE *	pattern2 )

overridevirtual

Distance between two raw patterns over the currently active features only. Reads exactly get_d() entries of each pattern, at the raw indices in _index[] (identity unless narrow_to() is in effect) – concrete distances must index through _index[], never assume a contiguous 0..get_d()-1 layout.

Parameters

pattern1,pattern2 raw feature vectors of at least get_n() entries each

Returns: a non-negative dissimilarity: 0 for identical patterns, larger values mean farther apart. Implementations are free to return any monotone transform of a true distance (e.g. a squared or fractionally powered one), so the value need NOT satisfy the triangle inequality and need not be a metric. Only the induced ORDER of neighbours matters to the callers (Classifier_kNN).

Implements FST::Distance< DATATYPE, DIMTYPE, SUBSET >.

◆ print()

template<typename DATATYPE, typename DIMTYPE, class SUBSET>

virtual std::ostream & FST::Distance_L1< DATATYPE, DIMTYPE, SUBSET >::print ( std::ostream & os ) const

inlineoverridevirtual

writes a human-readable identification of the object; base default writes nothing

Reimplemented from FST::Clonable.

The documentation for this class was generated from the following file:

/Users/psms/dev/devtest1/_src_criteria/distance_L1.hpp
