Implements train/test data splitting: use randomly chosen x% of data samples for training and another y% of data for testing, without overlaps, separately in each class. More...

#include <data_splitter_randrand.hpp>

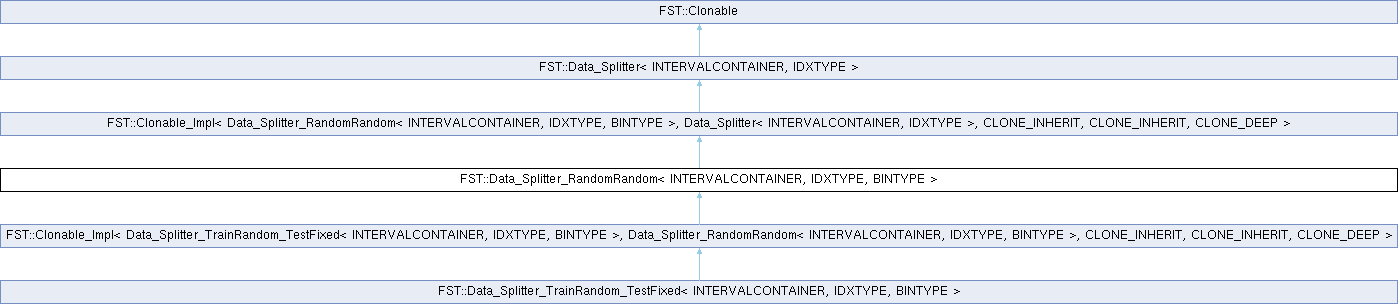

Inheritance diagram for FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >:

Public Types
typedef Clonable_Impl< Data_Splitter_RandomRandom, Data_Splitter< INTERVALCONTAINER, IDXTYPE >, CLONE_INHERIT, CLONE_INHERIT, CLONE_DEEP >	parent_impl
Public Types inherited from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >
typedef std::shared_ptr< INTERVALCONTAINER >	PIntervaller
	shared pointer to one class's list of train/test data intervals

Public Member Functions
	Data_Splitter_RandomRandom (const IDXTYPE _splits, const IDXTYPE _perctrain, const IDXTYPE _perctest, const bool randomize=false)
	`_splits` splits, each drawing `_perctrain` % of each class for training and `_perctest` % for testing (non-overlapping); `randomize` selects a per-instance engine seeded from std::random_device instead of the reproducible library PRNG (see the class warning).
	Data_Splitter_RandomRandom (const Data_Splitter_RandomRandom &dsp)
	Copy constructor. It deliberately does NOT inherit RNG state: in the randomize==true mode each copy seeds its own engine in prepareFirstSplit(), which is what keeps worker-thread clones from all drawing the same "random" splits. Configuration and the split counter transfer.
virtual IDXTYPE	getNoOfSplits () const override
virtual std::ostream &	print (std::ostream &os) const override
	writes a human-readable identification of the splitter and its configuration; base default writes nothing
Public Member Functions inherited from FST::Clonable_Impl< Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >, Data_Splitter< INTERVALCONTAINER, IDXTYPE >, CLONE_INHERIT, CLONE_INHERIT, CLONE_DEEP >
Data_Splitter< INTERVALCONTAINER, IDXTYPE > *	clone () const override
	dispatches to the DEEP_KIND mechanism (default CLONE_DEEP: Derived's copy-constructor)
Data_Splitter< INTERVALCONTAINER, IDXTYPE > *	sharing_clone () const override
	dispatches to the SHARING_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Data_Splitter< INTERVALCONTAINER, IDXTYPE > *	stateless_clone () const override
	dispatches to the STATELESS_KIND mechanism (default CLONE_INHERIT: defers to Base, which throws by family convention)
Public Member Functions inherited from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >
	Data_Splitter (const Data_Splitter &dsp)
	Deep-copies every class's TClassSplitter (own train/test interval lists, not shared with `dsp`).
void	assign (const unsigned int _clsidx, const PIntervaller _train, const PIntervaller _test)
	Registers class `_clsidx's` train/test interval lists (growing csplit as needed); the caller retains ownership via the shared pointers.
void	set_n (const unsigned int _clsidx, const IDXTYPE _n)
	Sets class `_clsidx's` pattern count, which getNoOfSplits() and the concrete prepare‍/splitClass hooks size their splits against (growing csplit as needed).
IDXTYPE	get_n (const unsigned int _clsidx) const
	the pattern count previously set for class `_clsidx` via set_n()
bool	makeFirstSplit ()
	Produces the first split: prepareFirstSplit(), then splitClassFirst() per class, then finishSplit().
bool	makeNextSplit ()
	Produces the next split: prepareNextSplit(), then splitClassNext() per class, then finishSplit().
Data_Splitter *	clone () const override
Data_Splitter *	sharing_clone () const override
Public Member Functions inherited from FST::Clonable
bool	is_clone () const
bool	is_sharing () const
	true if this instance is a sharing_clone() result (referencing, not owning, the source's structures)
bool	is_sharing_clone () const
	true if this instance is BOTH a clone and sharing – i.e. specifically a sharing_clone() result, not a clone()/stateless_clone() one

Protected Types
typedef Data_Splitter< INTERVALCONTAINER, IDXTYPE >	TCC
Protected Types inherited from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >
typedef std::shared_ptr< TClassSplitter >	PClassSplitter
	shared pointer to one class's TClassSplitter
typedef std::vector< PClassSplitter >::const_iterator	ClassIterator
	iterator over csplit, as passed to the per-class splitClassFirst()/splitClassNext() hooks

Protected Member Functions
virtual void	makeRandomSplit (const IDXTYPE n, const std::shared_ptr< INTERVALCONTAINER > list_train, const std::shared_ptr< INTERVALCONTAINER > list_test)
	Generates one class's non-overlapping random train/test split of `n` samples into `list_train` / `list_test` (perctrain %/perctest % via fill_randomly()/fill()/translate()).
virtual const char *	splitter_name () const override
	class name, used in error messages
virtual bool	prepareFirstSplit () override
	set up split-sequence state; false = no split can be made
virtual bool	prepareNextSplit () override
	advance split-sequence state; false = no more splits
virtual void	splitClassFirst (typename TCC::ClassIterator c, const unsigned int) override
	write first-split train/test intervals of class `cidx` (`c` is that class's entry in csplit)
virtual void	splitClassNext (typename TCC::ClassIterator c, const unsigned int) override
	write next-split train/test intervals of class `cidx` (a single-split splitter never gets here, since its prepareNextSplit() returns false)
void	fill_randomly (const IDXTYPE n, const BINTYPE id_empty, const BINTYPE id_fill, const IDXTYPE count, const IDXTYPE minidx, const IDXTYPE maxidx)
	Randomly relabels `count` of the still-`id_empty` slots of _data (within [`minidx`,`maxidx`]) to `id_fill`; draws from the per-instance engine when _randomize, else from the reproducible FST::fst_rand() stream.
void	fill (const IDXTYPE n, const BINTYPE id_empty, const BINTYPE id_fill, const IDXTYPE minidx, const IDXTYPE maxidx)
	Relabels every still-`id_empty` slot of _data (within [`minidx`,`maxidx`]) to `id_fill`, unconditionally (no randomness).
void	translate (const IDXTYPE n, const BINTYPE id_fill, const std::shared_ptr< INTERVALCONTAINER > lst)
	Converts the binary _data labeling (id_fill vs. everything else) over indices [0,`n`) into `lst's` list of consecutive Data_Interval runs.
Protected Member Functions inherited from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >
void	assert_csplit () const
	DEBUG-only: asserts csplit is non-empty and every class has n>0 and non-null train/test lists.
virtual void	finishSplit ()
	post-loop state update shared by first/next split
Protected Member Functions inherited from FST::Clonable
void	set_cloned (const bool cloned=true)
	marks/unmarks this instance as a clone; call from clone()/stateless_clone() overrides (Clonable_Impl does this automatically)
void	set_sharing (const bool sharing=true)
	marks/unmarks this instance as sharing (see is_sharing())
void	set_sharing_cloned (const bool cloned=true, const bool sharing=true)
	sets both flags at once; call from sharing_clone() overrides (Clonable_Impl does this automatically)

Protected Attributes
IDXTYPE	_n_max
	actual _data size (capacity; may exceed the current class size n)
std::unique_ptr< BINTYPE[]>	_data
	pattern selection array: one BINTYPE label (id_empty/id_train/id_test) per sample index, reused/reallocated per class in makeRandomSplit()
const IDXTYPE	perctrain
	percentage of each class's samples drawn for training
const IDXTYPE	perctest
	percentage of each class's samples drawn for testing
const IDXTYPE	splits
	number of splits this splitter yields (getNoOfSplits())
const bool	_randomize
	true = seed a per-instance std::mt19937 engine (different splits every run); false = draw from the FST::fst_rand() stream, which makes the splits reproducible at a fixed seed
std::mt19937	_rng
	per-instance RNG engine; used only when _randomize==true (see prepareFirstSplit())
IDXTYPE	current_split
	1-based index of the split currently being produced; 0 outside an active split sequence
Protected Attributes inherited from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >
std::vector< PClassSplitter >	csplit
	one TClassSplitter per data class, indexed by class index; grown on demand by assign()/set_n()

Detailed Description

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>
class FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >

Implements train/test data splitting: use randomly chosen x% of data samples for training and another y% of data for testing, without overlaps, separately in each class.

Yields the configured number of splits, each drawing a fresh random selection. The train part holds (class size * perctrain)/100 samples, rounded down. When the two percentages add up to 100 the test part is the whole complement of the train part (so it may hold one sample more than (class size * perctest)/100 would give); otherwise it holds (class size * perctest)/100 samples, rounded down, and the remaining samples are used by neither part.

Reproducibility. By default the draws come from the library PRNG (FST::fst_rand()), so a fixed seed reproduces the same splits on every platform and in every run.

Warning: Constructed with randomize==true, the splitter instead seeds its own engine from std::random_device: the splits then differ from run to run and results cannot be reproduced. Choose it only for experiments that deliberately want fresh randomness each time.

Examples: demo55.cpp.

Member Typedef Documentation

◆ parent_impl

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

typedef Clonable_Impl<Data_Splitter_RandomRandom,Data_Splitter<INTERVALCONTAINER,IDXTYPE>,CLONE_INHERIT,CLONE_INHERIT,CLONE_DEEP> FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::parent_impl

implements stateless_clone(); clone/sharing_clone throw in Data_Splitter

◆ TCC

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

typedef Data_Splitter<INTERVALCONTAINER,IDXTYPE> FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::TCC

protected

alias for the Data_Splitter base, used by the per-class hooks

Member Function Documentation

◆ fill_randomly()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

void FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::fill_randomly	(	const IDXTYPE	n,
		const BINTYPE	id_empty,
		const BINTYPE	id_fill,
		const IDXTYPE	count,
		const IDXTYPE	minidx,
		const IDXTYPE	maxidx )

protected

Randomly relabels count of the still-id_empty slots of _data (within [minidx,maxidx]) to id_fill; draws from the per-instance engine when _randomize, else from the reproducible FST::fst_rand() stream.

Precondition: at least count slots in [minidx,maxidx] still carry id_empty (asserted in debug builds). A draw that lands on an already-filled slot walks forward (wrapping at maxidx) to the next free one, so the selection is not exactly uniform over all subsets of the given size.

◆ getNoOfSplits()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual IDXTYPE FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::getNoOfSplits ( ) const

inlineoverridevirtual

number of splits this splitter yields (requires class sizes to have been set via set_n())

Implements FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

◆ makeRandomSplit()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

void FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::makeRandomSplit	(	const IDXTYPE	n,
		const std::shared_ptr< INTERVALCONTAINER >	list_train,
		const std::shared_ptr< INTERVALCONTAINER >	list_test )

protectedvirtual

Generates one class's non-overlapping random train/test split of n samples into list_train / list_test (perctrain %/perctest % via fill_randomly()/fill()/translate()).

Reimplemented in FST::Data_Splitter_TrainRandom_TestFixed< INTERVALCONTAINER, IDXTYPE, BINTYPE >.

◆ prepareFirstSplit()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual bool FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::prepareFirstSplit ( )

inlineoverrideprotectedvirtual

set up split-sequence state; false = no split can be made

Reimplemented from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

◆ prepareNextSplit()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual bool FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::prepareNextSplit ( )

inlineoverrideprotectedvirtual

advance split-sequence state; false = no more splits

Implements FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

◆ print()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual std::ostream & FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::print ( std::ostream & os ) const

inlineoverridevirtual

writes a human-readable identification of the splitter and its configuration; base default writes nothing

Reimplemented from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

Reimplemented in FST::Data_Splitter_TrainRandom_TestFixed< INTERVALCONTAINER, IDXTYPE, BINTYPE >.

◆ splitClassFirst()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual void FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::splitClassFirst	(	typename TCC::ClassIterator	c,
		const unsigned int	cidx )

inlineoverrideprotectedvirtual

write first-split train/test intervals of class cidx (c is that class's entry in csplit)

Implements FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

◆ splitClassNext()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual void FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::splitClassNext	(	typename TCC::ClassIterator	c,
		const unsigned int	cidx )

inlineoverrideprotectedvirtual

write next-split train/test intervals of class cidx (a single-split splitter never gets here, since its prepareNextSplit() returns false)

Reimplemented from FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

◆ splitter_name()

template<class INTERVALCONTAINER, typename IDXTYPE, typename BINTYPE>

virtual const char * FST::Data_Splitter_RandomRandom< INTERVALCONTAINER, IDXTYPE, BINTYPE >::splitter_name ( ) const

inlineoverrideprotectedvirtual

class name, used in error messages

Implements FST::Data_Splitter< INTERVALCONTAINER, IDXTYPE >.

The documentation for this class was generated from the following file:

/Users/psms/dev/devtest1/_src_dataio/data_splitter_randrand.hpp
